Bimetal Hole Saw J-type (Dual-shank)
Features
For Hex6.35mm
For 3-jaw Chuck
■Hex 6.35mm and 10mm 3 jaw chuck in one shank due to patented Dual shank design.
■Easy though hole drilling due to the stop-shoulderless design applied on 17mm-65mm.
■Multi purpose use for woods, steel plates and resin products due to the wide side clearance straight tooth set design.
■Drilling to stainless steel t=1.6mm due to M42 Cobalt high speed steel.
■Easy though hole drilling due to the stop-shoulderless design applied on 17mm-65mm.
■Multi purpose use for woods, steel plates and resin products due to the wide side clearance straight tooth set design.
■Drilling to stainless steel t=1.6mm due to M42 Cobalt high speed steel.

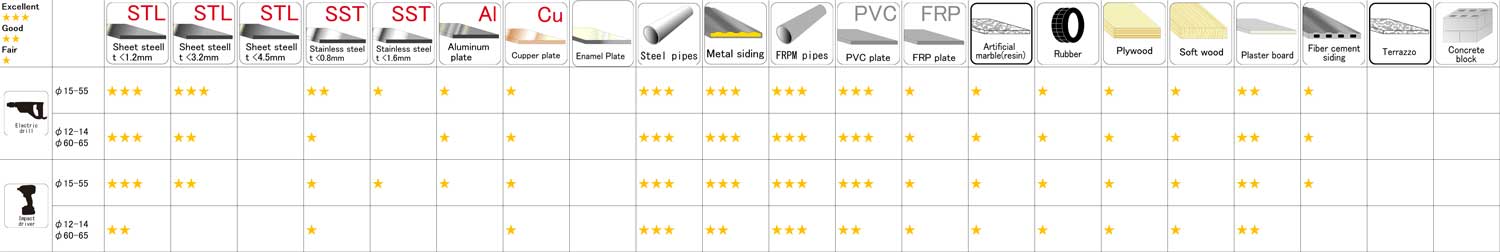

Applications
Sheet steel t<3.2mm, Metal siding, Sheet metal, Aluminum plate, Wood, Plywood, PVC plate, Resin...etc

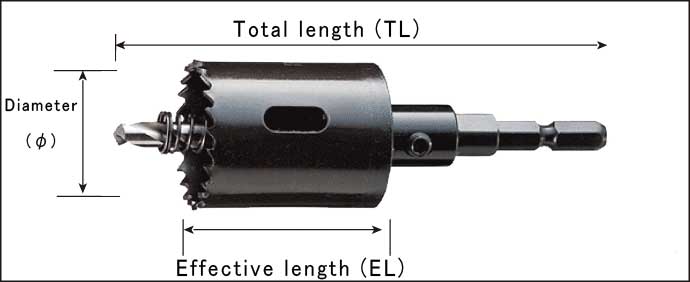

Specifications
| Size | Φ12mm～65mm |
| Chuck size | Dual shank (Hex6.35+10mm) |
